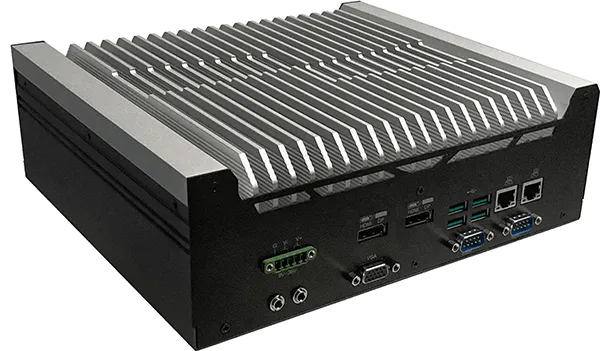

8th / 9th Gen Intel Core Embedded System
-lg.jpg "8th / 9th Gen Intel Core Embedded System")
Features of 8th and 9th Gen Intel Core Fanless Embedded System:
- 8th and 9th Gen Intel Core™ Fanless Embedded System with Intel® Q370/H310
- Supports DDR4 SODIMM up to 64GB
- Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)
- Rich I/O connectivity: 2 GbE, 4 COM, 4 USB 3.1, 2 USB 2.0 (Q370 only)
- 3 M.2 slots support NVMe
- Support 5G Communication
- Operating Temperature: -20 to 70°C
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Specification:
System
Processor
- 8th/9th Generation Intel® Core™ Processors, LGA 1151
- Intel® Core™ i7-8700T Processor, Hexa Core, 12M Cache, 2.4GHz (4GHz), 35W
- Intel® Core™ i5-8500T Processor, Hexa Core, 9M Cache, 2.1GHz (3.5GHz), 35W
- Intel® Core™ i3-8100T Processor, Quad Core, 6M Cache, 3.1GHz, 35W
- Intel® Core™ i7-9700TE , Octa Cores, 12M Cache, up to 3.8 GHz, 35W
- Intel® Core™ i5-9500TE , Hexa Cores, 9M Cache, up to 3.6 GHz), 35W
- Intel® Core™ i3-9100TE, Quad Cores, 6M Cache, up to 3.2 GHz, 35W
- Intel® Pentium® Processor G5400T, Dual Core, 4M Cache, 3.1GHz, 35W
- Intel® Celeron® Processor G4900T, Dual Core, 2M Cache, 3.1GHz, 35W
Chipset
- Intel® Q370/C246 Chipset
- Intel® H310 Chipset
Memory
- Two 260-pin SODIMM up to 64GB
- Dual Channel DDR4 2400/2666MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller - Intel® HD Graphics
Feature
- OpenGL up to 5.0, DirectX 11, OpenCL 2.1
- HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
- HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
Q370/C246:
1 x VGA
2 x HDMI/DP++ (auto detection)
H310:
1 x VGA
1 x HDMI/DP++ (auto detection)
Dual Displays/ Triple Displays
Q370/C246:
VGA + 2 x HDMI/DP++ (auto detect)
H310:
VGA + 1 x HDMI/DP++ (auto detect)
Storage
Internal
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1/5/10
Expansion
Interface
Q370:
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x Full-size Mini PCIe (PCIe/USB 2.0)
H310:
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (SATA)
1 x Full-size Mini PCIe (PCIe/USB 2.0)
Ethernet
Controller
Q370/C246:
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
H310:
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps)
LED
Indicators
1 x Status LED
1 x HDD LED
Front I/O
Serial
4 x RS-232/422/485 (DB-9)
USB
Q370/C246:
2 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
3 x Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.1 (type A)
Display
Q370/C246:
1 x VGA
2 x HDMI/DP++ (auto detect)
H310:
1 x VGA
1 x HDMI/DP++ (auto detect)
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 1.2 or 2.0 (optional)
Power
Type
Wide Range 9~36V
Connector
5-pole Terminal Block
5-pin Power Extension Switch Connector
OS Support
Windows 10 IoT Enterprise 64 Bit
Linux (available upon request)
Environment
Operating Temperature
-20 to 70°C (SSD or mSATA)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Dimensions
255.3 x 85 x 224mm
Construction
Metal + Aluminum
Mounting
Wall Mount
Weight
4.15 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A
Country of Origin
Taiwan
