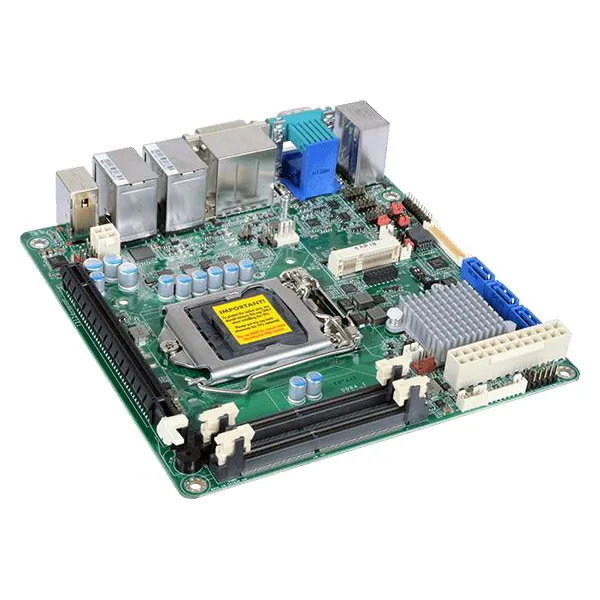

Mini-ITX motherboard SD100-Q170
7/6th Gen Intel® Core™ with Intel® Q170, Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.0, 6 USB 2.0, Multiple expansion: 1 PCIe x16, 1 Mini PCIe, 2 DDR4 SODIMM up to 32GB, Four display ports support three independent displays: VGA + LVDS + DVI-I + DP++, 15-Year CPU Life Cycle Support
Mini-ITX motherboard SD100-Q170 Characteristics:
Chipset Intel® Q170
Memory Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS Insyde SPI 128Mbit
Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
