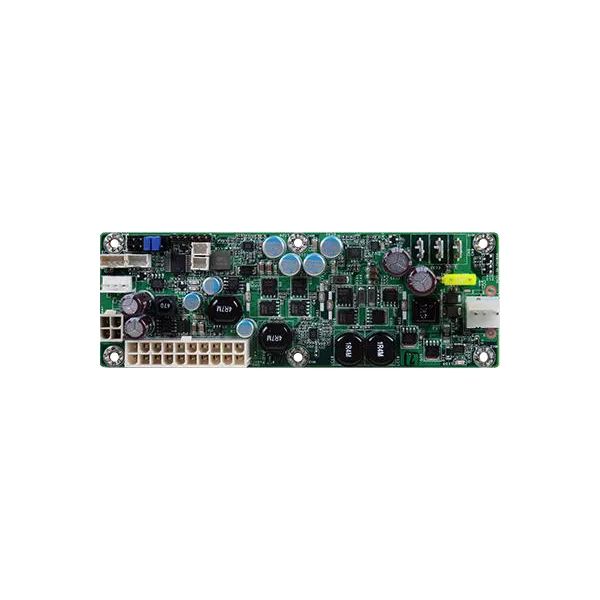

DC to DC Converters X102-DC30

DC to DC Converters X102-DC30

6V - 30V DC to DC Converters, Input: 6V - 30V, Output: 120W , DIMENSIONS: 146mm x 50mm

DC to DC Converters X102-DC30 characteristics:

Input Voltage: 6V - 30V

Maximum Output: 120W

CONNECTORS: One 3-pin DC-in Connector ; One 4-pin ATX 12V power; One 20-pin ATX power; One 4-pin FDD power

ENVIRONMENT: Temperature: 0-60°C / 32-140°F; Relative Humidity: 10%-90%

Output Voltage (power for DC voltages): +3.3V ±5%, 6.0A; +5V ±5%, 6.0A; 5VSB ±5%, 1.5A;+12V ±5%, 5A; -12V ±10%, 0.15A

DIMENSIONS: 6 layers, 146mm x 50mm; height: 20mm
