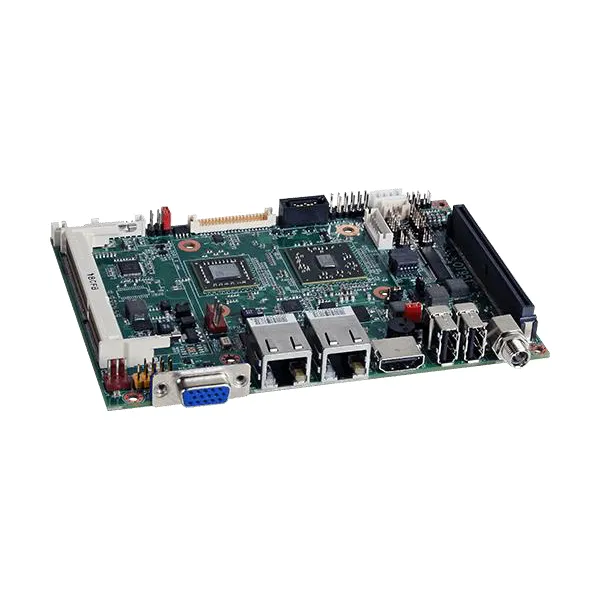

3.5 Inches SBC board OT951-D

3.5 Inches SBC board OT951-D

AMD® Embedded G-Series with AMD® A50M, 1 DDR3 SODIMM up to 8GB, 1 HDMI, 1 VGA, 1 LVDS, Expansion: 1 Mini PCIe, 1 I/O expansion , Rich I/O: 2 Intel GbE, 2 COM, 4 USB 2.0, 7-Year CPU Life Cycle Support

3.5 Inches SBC board OT951-D Characteristics:

Processor         OT951-DT56N:

- AMD® T56N, 1.65GHz, 2x 512KB L2, 18W TDP, dual-core

- Cooling: heatsink with cooling fan


- AMD® T40N, 1.0GHz, 2x 512KB L2, 9W TDP, dual-core

- Cooling: heatsink without cooling fan

Chipset            AMD® A50M

Memory           One 204-pin DDR3 SODIMM up to 8GB

Single Channel DDR3 1066/1333MHz (OT951-DT56N)

Single Channel DDR3 1066MHz (OT951-DT40N)

BIOS               AMI SPI 64Mbit

Controller        2 x Realtek® RTL8111DL (10/100/1000Mbps)

Output & Interval                   System Reset, Programmable via Software from 1 to 255 Seconds

Certifications              CE, FCC Class B, UL, RoHS
