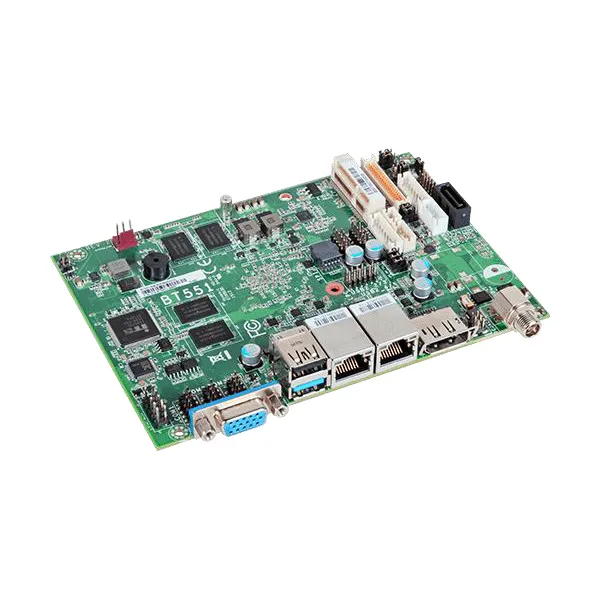

3.5 Inches SBC board BT551/BT553
2GB/4GB DDR3L memory down, 1 VGA, 1 LVDS, 1 DP, Expansion: 1 Mini PCIe , Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0, Intel Atom® Processor E3800, 15-Year CPU Life Cycle Support
3.5 Inches SBC board BT551/BT553Characteristics:
Processor
Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Memory 2GB/4GB DDR3L memory down
Dual channel DDR3L 1066/1333MHz
BIOS AMI SPI 64Mbit
Interface 1 x Mini PCIe
Controller 2 x Intel® I210 PCIe (10/100/1000Mbps)
Temperature Operating: 0°C to 60°C - Atom, Celeron (Fanless)
: -20°C to 70°C - Celeron (Fanless)
: -40°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
