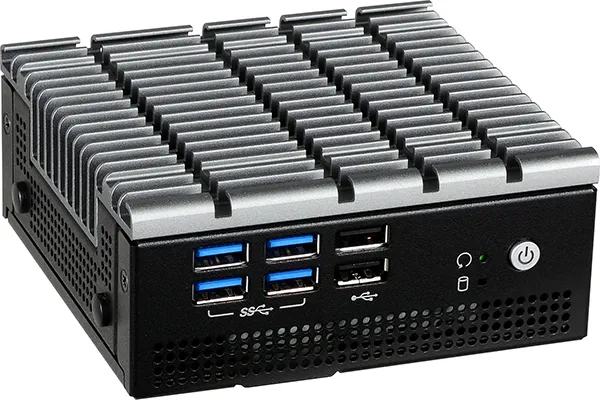

Features of 6th and 7th Gen Intel Core Fanless Embedded system:
- Supports DDR4 SODIMM up to 32GB
- HDMI resolution supports up to 4096x2304 @ 24Hz
- 1x 2.5" SATA 3.0 drive bay
- Rich I/O connectivity: 2 GbE, 4 USB 3.0, 2 USB 2.0
- Supports 1 Mini PCIe and 1 M.2 slots
- 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
Specification:
System
Processor
- 6th/7th Generation Intel® Core™ Processors, BGA 1356
- Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
- Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
- Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
- Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
- Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
- Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Memory
- Two 260-pin SODIMM up to 32GB
- Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Display
2 x HDMI
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2304 @ 24Hz
Dual Displays
HDMI
Storage
Internal
1 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x Half-size Mini PCIe socket (PCIe/USB 2.0)
1 x M.2 M Key 2280 (Support SATA signal only)
Ethernet
Controller
1 x Intel® I210AT (10/100/1000Mbps)
1 x Intel® I219LM (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x Storage LED
Front I/O
USB
2 x USB 2.0
4 x USB 3.0
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
2 x Antenna Hole
Rear I/O
Ethernet
2 x GbE (RJ-45)
Display
2 x HDMI
Audio
1 x Line-out
1 x Mic-in
Power
Type
12V DC in
Connector
DC Jack
OS Support
Windows 10 IoT Enterprise LTSB 64 Bit
Environment
Operating Temperature
-20 to 40°C
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall/VESA Mount
Dimensions (W x H x D)
115mm x 48.7mm x 111mm
Weight
< 1Kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A, RoHS, UL/cUL
Packing List
1 EB100-KU system unit
1 Quick Installation Guide
Mounting screws for Mini PCIe module & M.2 module
Wall mount kit (optional)
Power adapter (optional)
Country of Origin
Taiwan
