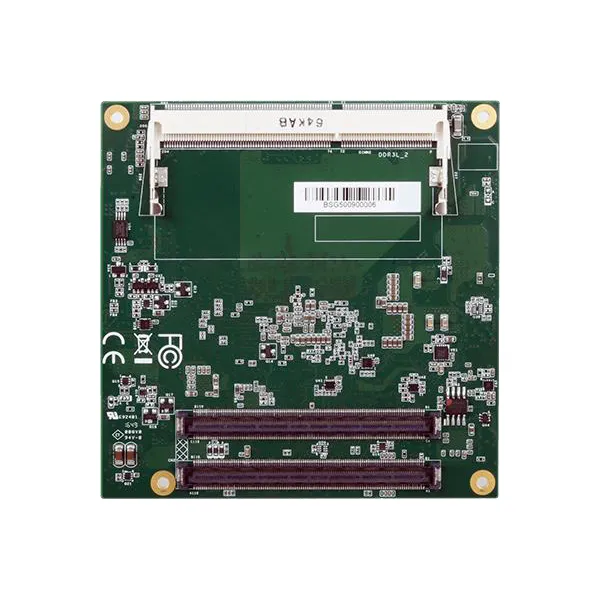

COM Express Type 6 AL968
Intel Atom® E3900 Series, Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0, 2 SATA 3.0, Multiple expansion: 4 PCIe x1, 1 LPC, 1 I2C, 1 SMBus, eMMC, Three independent displays: VGA*/DDI + LVDS*/eDP + DDI, Dual channel DDR3L 1600MHz SODIMM up to 16GB, 15-Year CPU Life Cycle Support
COM Express Type 6 AL968 Characteristics:
Memory Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS Insyde SPI 128Mbit
Controller Intel® HD Graphics
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Interface HD Audio
Controller 1 x Intel® I211AT (10/100/1000Mbps) (0°C to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
