Specifications:

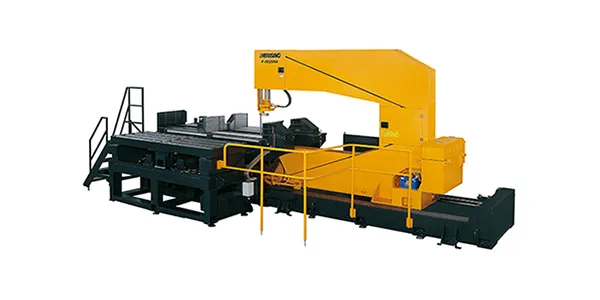

ModelV-0422
Cutting capacity (H x D)400 mm x 2200 mm (15.7" x 86.6")
min. clamp width 1200 mm (47.2")
Blade Speed15-75 m/min (50 to 250 fpm)
Motor
Blade drive7.5 kW (10 HP)
Hydraulic pump2.2 kW (3 HP)
Coolant pump0.6 kW (3/4 HP)
Chip conveyor0.4 kW (1/2 HP)
Blade Size9940 x 54 x 1.6mm (391.3" x 2" x 0.063")
Shuttle vise stroke400 mm (15.7") (optional)
Saw frame feedServomotor
Saw frame shuttle stroke2400 mm (94.4")
Table height1600 mm (63")
Machine weight 16500 kgs (36300 lbs) (SA)
17500 kgs (38500 lbs) (HA)
Floor space without roller table (LxDxH)3100 x 8150 x 3700 mm (SA)
(122" x 320.8" x 145.6") (SA)
3400 x 8150 x 3700 mm (HA)
(133.8" x 320.8" x 145.6") (HA)
