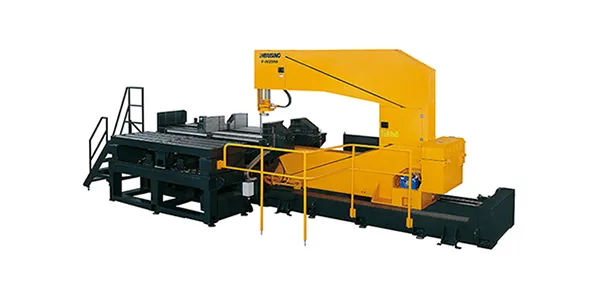

Vertical Band Saws V Type V-0417

Vertical Band Saws V Type V-0417

ModelV-0417

Cutting capacity (H x D)400 mm x 1700 mm (15.7" x 67")

min. clamp width 700 mm (27.5")

Blade Speed15-75 m/min (50 to 250 fpm)

MotorBlade drive7.5 kW (10 HP)

Hydraulic pump2.2 kW (3 HP)

Coolant pump0.6 kW (3/4 HP)

Chip conveyor0.4 kW (1/2 HP)

Blade Size9040 x 54 x 1.6 mm (355.90" x 2" x 0.063")

Shuttle vise stroke400 mm (15.7") (optional)

Saw frame feedServomotor

Saw frame shuttle stroke1900 mm (74.8")

Table height1600 mm (63")

Machine weight 15200 kg (33500 lb) (SA)

16500 kg (36300 lb) (HA)

Floor space without roller table (LxDxH)3100 x 7300 x 3600 mm (SA)

(122" x 287.4" x 141.7") (SA)

3400 x 7300 x 3600 mm (HA)

(133.8" x 287.4" x 141.7") (HA)

Specifications:
