Specifications:

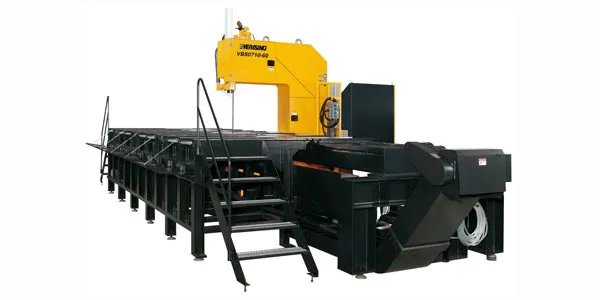

ModelVBS0707
Cutting height700 mm (27.6”)
Cutting depth700 mm (27.6”)
Cutting length3/4.5/6 M
Table support width
Outer table1600 mm (63”)
Inner table700 mm (27.6”)
Blade size6800 x 54 x 1.6 mm (267.7” x 2.1” x 0.063”)
Blade speed15-75 m/min (50 to 250 fpm)
Cutting feedServomotor (2-500 mm/min)
Motor
Blade drive5.5 kW (7.5 HP)
Hydraulic pump1.5 kW (2 HP) x2
Coolant pump0.75 kW (1 HP)
Feed servomotor1 kW
Table height1500 mm (59.1”)
Floor space10100L x 4100W mm (379.6” x 161.4”) (6M)
Machine height3700 mm (145.7”)
Machine weight (approx.)15000 kgs (33069 lbs) (6M)
