Specifications:

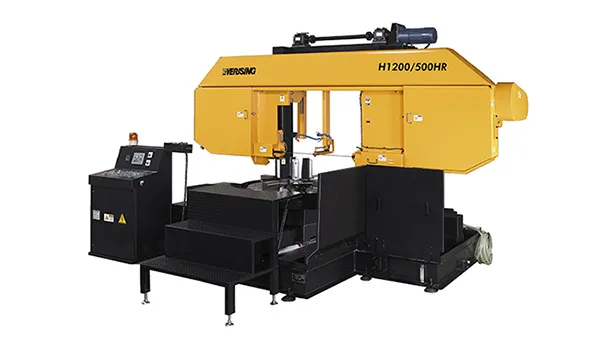

MODEL H1200/500R
CAPACITY
OD 1200 mm
ID 500 mm
HEIGHT 500 mm
MAX. WALL THICKNESS 300 mm
BLADE SIZE 8300 x 67 x 1.6 mm
BLADE SPEED 15 to 75 m/min
BLADE TENSION Hydraulic
MOTOR
BLADE 11 kW (15 HP)
HYD. PUMP 2.2 kW (3 HP)
COOLANT PUMP 0.4 kW (1/2 HP)
SERVO FEED 2 kW (3 HP)
TABLE ROTATE 1.5 kW (2 HP)
