Specifications:

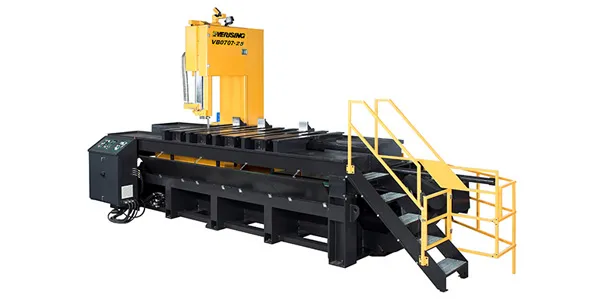

ModelVB0707
Cutting height700 mm (27.6")
Cutting depth700 mm (27.6")
Cutting length1.5/2.5 M
Table support widthOuter table700 mm (27.6")
Inner table700 mm (27.6")
Blade size6800 x 54 x 1.6 mm (267.7" x 2" x 0.06")
Blade speed15-75 m/min (50 to 250 fpm)
Cutting feedHydraulic
MotorBlade drive5.5 kW (7.5 HP)
Hydraulic pump1.5 kW (2 HP)
Coolant pump0.7 kW (1 HP)
Table height1600 mm (63")
Machine height3700 mm (145.7”)
Floor space6400L x 2550W mm (252” x 100.4”) (1.5M)
7000L x 2550W mm (275.6” x 100.4”) (2.5M)
Machine weight (approx.)9000 kgs (19842 lbs) (1.5M)
11500 kgs (25353 lbs) (2.5M)
