Specifications:

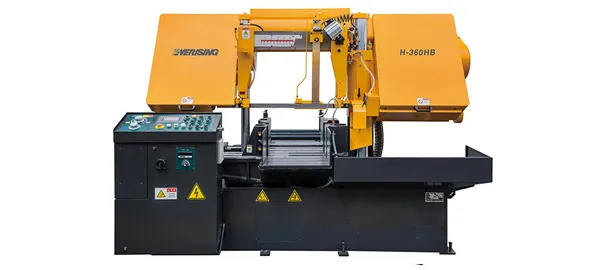

ModelH-360HB
Capacity●360 mm
■360 x 360 mm
Bundle Cutting
Width180 to 280 mm
Height50 to 160 mm
Blade Speed20 to 100 m/min
Motor
Blade Drive3.7 kW (5HP)
Hyd. Pump1.5 kW (2HP)
Coolant Pump0.1 kW (1/8HP)
Blade Size4420 x 34 x 1.1 mm
Blade TensionHydraulic
Machine Weight2310 kg
Floor Space (L x W)2500 x 2200 mm
