SINGLE-IN-LINE (SIL) SERIES 118
SINGLE-IN-LINE (SIL) SERIES 111 - 119
All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding test and measurement applications. Internal mu-metal magnetic screens (optional on Series 103) allow very high packing density. Diodes are optional in most reed relays.

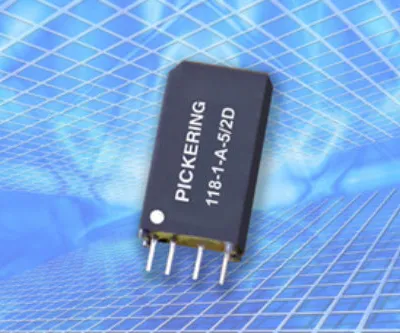

Pickering Series 118 Reed Relays
High Coil Resistance Reed Relays
Stacks on small 0.2 x 0.33 inches pitch
• Switches rated at 10 Watts, 0.5 A or 15 Watts, 1 A
• Plastic package with internal mu-metal magnetic screen
• Small size means the relays take up very little board area, conserving PCB space
• Insulation resistance greater than 10E12 Ohms (1TOhms)
• 100% tested for dynamic contact resistance for guaranteed performance
• SoftCenter ® construction
• Highest quality instrumentation grade switches
The Pickering Series 118 is a range of very sensitive reed relays that are ideal for portable electronic instruments or other test applications where low power consumption and a very small footprint is important. The reed relays have 5 volt coils with a resistance up to 2200 Ohms and the option of an internal diode.
Two reed switch types are available. Switch type number 1 is better suited for general purpose applications, while Switch type number 2 is better suited to low levels.
