ULTRA-HIGH DENSITY SERIES 120

ULTRA HIGH DENSITY 4MM

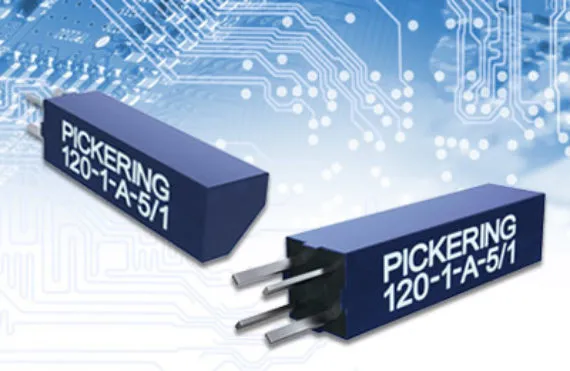

Ultra-high density 4mm2 TM reed relay product lines stack on a 4mm x 4mm pitch, allowing the highest packing density currently available in the industry. The relays feature the highest quality instrumentation grade reed switches and internal mu-metal magnetic screens. 4mm2 TM reed relays are ideal for very high density applications such as A.T.E. switching matrices or multiplexers.

Pickering Series 120

Single Pole Reed Relays

Up to 1 Amp switching - Very high packing density

Stacking on 4mm x 4mm pitch

• 3, 5 or 12 Volt coils

• 1 Form A (SPST) Normally Open Energize to make

• Highest packing density currently available

• SoftCenter ® construction

• Highest quality instrumentation grade switches

• Plastic package with internal mu-metal magnetic screen

• Insulation resistance greater than 1012 Ω

• 100% tested for dynamic contact resistance for guaranteed performance

The Series 120 reed relay range takes up the minimum board area making them ideal for very high density applications such as A.T.E. switching matrices or multiplexers. Requiring a board area of only 4mm x 4mm, these relays allow the highest packing density currently available.

Two switch types are available, a general purpose sputtered ruthenium switch rated at 15 Watts, 1 Amp (3 volt version) or 20 Watts, 1 Amp (5 & 12 volt versions) and a low level sputtered ruthenium switch rated at 10 Watts, 0.5 Amps.
