DUAL-IN-LINE (DIL) SERIES 97
DUAL-IN-LINE (DIL/DIP) SERIES 97 - 98
All Pickering Reed Relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications.
Diodes are optional. Two ranges of DIL (DIP) reed relays featuring internal mu-metal magnetic screens.

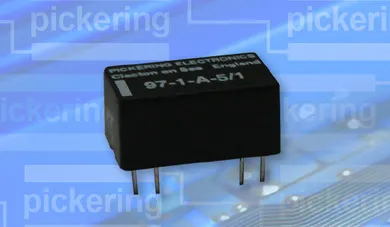

Pickering Series 97
Dual-in-Line Reed Relays
• SoftCenter ® construction
• Encapsulated in a plastic package with internal mu-metal magnetic screen
• Wide range of switch configurations - 1 Form A, 1 Form B, 2 Form A, 1 Form C
• Dry and mercury wetted switches are available with the same pin configuration and footprint
• 5, 12 and 24 Volt coils are standard, with or without internal diode
The Series 97 is a range of reed relays with pins in the popular Dual-in-Line format.
Being encapsulated in a plastic package using a very high resistivity epoxy resin gives the device several advantages over the more usual moulded construction.
The reed switches are not subjected to the high temperatures and pressures of the transfer moulding process with the inherent risk of damage to the sensitive glass to metal seals.
The construction incorporates a mu-metal wrap around the operating coil to eliminate magnetic interaction problems.
