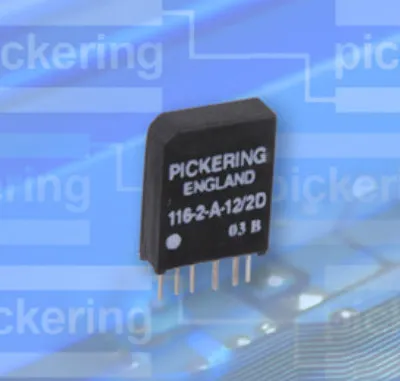

Pickering Series 116 Reed Relays
Single-in-Line (SIP) Reed Relays
10 Watts switching - Very high packing density. 1 Form A (SPST) stacks on 0.15 x 0.27 inches pitch. 2 Form A (DPST) stacks on 0.15 x 0.40 inches pitch
• Plastic package relay with internal mu-metal magnetic screen
• Reed Relay takes up the minimum of board area, conserving PCB space
• Reed switches feature sputtered ruthenium contacts making them ideal for low level or "cold" switching applications
• Insulation resistance greater than 10E12 ohms
• 5V or 12V coils with optional internal diode
• 100% tested for dynamic contact resistance
• SoftCenter ® construction
• Highest quality instrumentation grade reed switches
The Pickering Series 116 is a range of Single-in-Line (SIP) reed relays intended for very high density applications such as A.T.E. switching matrices or multiplexers.
They have a switch rating of 10 Watts, 0.5 Amps and are pin compatible with the Pickering Series 117 reed relays which have a lower power rating of 3 Watts and a lower profile height of 0.38 inches (9.65 mm).
