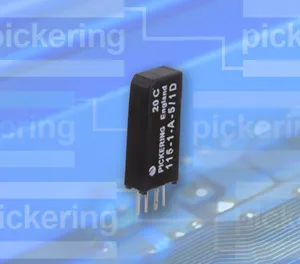

Pickering Series 115
Single-in-Line Reed Relays
Up to 20 Watts switching - Very high packing density Stacks on 0.15 x 0.27 inches pitch
• SoftCenter ® construction
• Highest quality instrumentation grade switches
• Plastic package with internal mu-metal magnetic screen
• They take up the minimum of board area, conserving board space
• Insulation resistance greater than 1E12 Ohms
• 100% tested for dynamic contact resistance for guaranteed performance
• 5 or 12 Volt coils with optional internal diode
The Pickering Series 115 is a range of Single-in-Line relays intended for very high density applications such as A.T.E. switching matrices or multiplexers.
They are pin compatible with the Pickering Series 116 and 117 but have a slightly higher profile.
The reed switch/coil assemblies used in this series are the same as used in the long established and well proven, Series 109 and 109P.
