All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications. Internal mu-metal magnetic screens (optional on Series 103) allow very high packing density. Diodes are optional.
Pickering Series 111

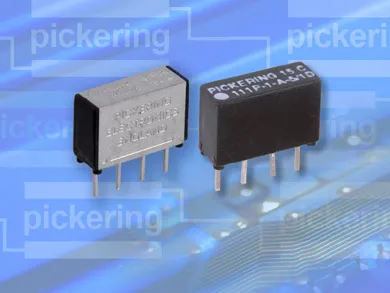

PICO SIL Reed Relays
Including coaxial types for up to 1.5 GHz for stacking on 0.15 x 0.4 inches pitch giving SUPERB PACKING DENSITY
• SoftCenter ® construction
• Highest quality instrumentation grade switches
• Mu-metal magnetic screening
• Internal mu-metal magnetic screen
• Two package styles - Mu-metal package or Plastic package with internal mu-metal magnetic screen
• They take up the minimum of board area,conserving board space
• Insulation resistance greater than 10E12 Ohms (1TOhms)
• 5 Volt coils with or without internal diode
• 100% tested for dynamic contact resistance
The Pickering Series 111 is a range of magnetically screened single-in-line reed relays that stack on 0.15 inches by 0.4 inches pitch. They have an identical footprint to the Series 110 and 112 but the height is reduced to only 0.26 inches (6.6mm).
The switch rating of 3 Watts is adequate for most instrumentation applications. If a higher power rating is required, please look at our Series 110 or 112 which have a 10 Watts rating and an identical pin-out. The range also includes the type 111RF, a 50 ohms coaxial device suitable for use up to 1.5 GHz.
