SINGLE-IN-LINE (SIL) SERIES 100
SINGLE-IN-LINE (SIL) SERIES 100 - 110

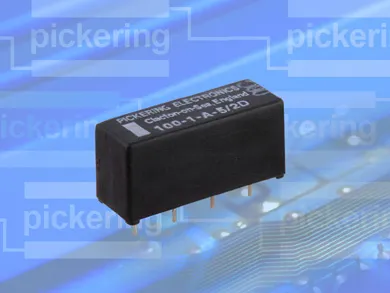

All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications. Internal mu-metal magnetic screens (optional on Series 103) allow very high packing density. Diodes are optional.
Pickering Series 100
Low Thermal EMF Relays
Direct drive from CMOS
• SoftCenter ® construction
• Highest quality instrumentation grade switches
• Thermal EMF about 1 microvolt or less
• Low power consumption, ideal for portable equipment
• Encapsulated in a plastic package with internal mu-metal magnetic screen
• Wide range of switch configurations - 1 Form A,1 Form B, 2 Form A, 1 Form C
• Two pole relay requires the same board area as the single pole type
• Dry and mercury wetted switches are available with the same pin configuration and footprint
• Insulation resistance greater than 10E12 Ohms (1TOhms) for dry Form A devices
• 5, 12 and 24 volt coils are standard, with or without internal diode
• 100% tested for dynamic contact resistance
