Omer Atiker Holding A.S

Horozluhan OSB Atabey Sk. No : 5 Selcuklu/KONYA/TURKIYE

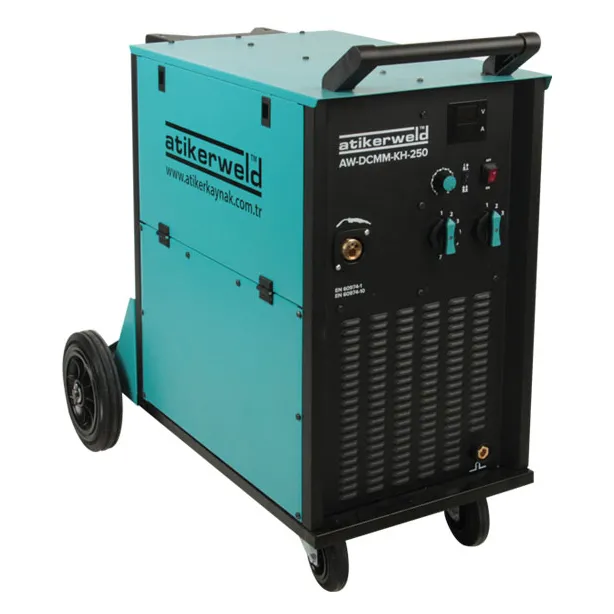

MIG/MAG WELDING MACHINE AW-DCMM-KH-250

Usage Area:

AW-DCMM-KH-250 is especially designed as MIG/MAG welding machine with water-cooled for welding thin materials.

This machine is also used for bonding thin to thick materials. It enables high performance for bonding materials with SG2 and other wires.

Applications:

It is suitable for all manufacturing sectors.
It is used for welding materials such as aluminium joint, furniture, profile joint, chair, bad base etc.
It enables high performances for welding of thin metal sheets.

Main Features:

Machine is produced according to requirements of welder and in case of need new programmes can be added. For example; Wire starting time, gas starting time, wire motor speed increase, wire motor speed decrease, usage of last gas in torch head.
It provides energy saving by taking itself to sleep mode, when it is not in use.
Main Voltage is designed according to 3 Phase, 380 V / 50-60 Hz
Steels such as SG2, ALMG5 and aluminium wires can be used
Wire Feeder Unit is suitable for diameters of 0,8 mm -1,0 mm wires.
2x2 Spool wire feeder unit is used to feed the mild wire constantly and at the same time to prevent deformation on the wire types which will use.
There is 24W plug for usage of carbone dioxide(CO2) gas heater. With this way it protects the user against electric shock in case of any fault status.
During the wire changing, it minimizes usage of gas thanks to feature of wire driving without gas.
It has four wheel and back wheels have shaft, so it prevents to rollover.
The welding machine has been taking under protection against warming up by means of a cooling fan to prevent the regime loss during the operation.
Machine has digital display of voltmeter, ampere meter. Welding can be followed on the screen.
Current range is formed thanks to coarse adjustment as 3 phase and fine adjustment as 7 phase. It provides a wide current and precise controlling feature.
Machine is designed to minimize grounding and weld splatter.
There is two different button as manuel and automatic.
Transformers and smoothing coils in the machine are manufactured from cooper and siliceous metal sheet to prevent regime loss
