IEI Integration Corp

Xizhi District., New Taipei City 221, TAIWAN

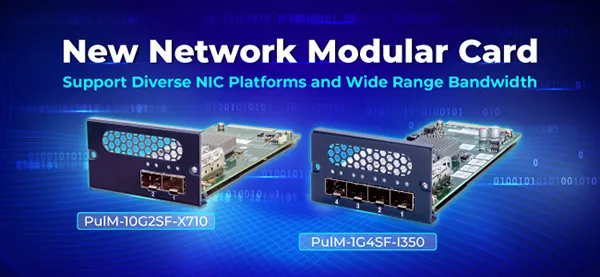

Smart NIC Cards - PulM-10G2SF-X710_PulM-1G4SF-I350

IEI PulM series, the smarter embedded computer NICs, can resolve this virtualization to make packet processing faster and more efficient at lower cost than standard CPUs. This industrial computer is ideal for users who want to, for instance, build up a network server with virtual machine and provide storage function.

Offload Functions

IEI provides four kinds of NIC, from Aquantia, Intel, Broadcom to Mellanox, with different network speed (1G, 2.5G, 5G, 10G or 25G).

PulM Network Module Slot

Install the IEI PulM networking module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (one PCIe x8 or two PCIe x4); the Slot B supports two PCIe x4 or four PCIe x2 from PCH.

Applications

Case Study - Police Station Network Firewall
Video - PUZZLE Series Introduction
Firewall Solution

Product Information

Model Name	PulM-10G2SF-X710	PulM-1G4SF-I350
Form Factor	IEI Networking Module - PulM	IEI Networking Module - PulM
NIC	Intel® Ethernet Controller X710-BM2	Intel® Ethernet Controller I350-AM4
LAN Bypass	N/A	N/A
LAN Interface	SFP+	SFP
Speed	1GbE/10GbE	1GbE
Ports	2	4
Host Interface	PCIe 3.0 x8	2 PCIe 2.0 x4
Storage Temp.	-20°C ~ 75°C (-4°F ~ 167°F)	-20°C ~ 75°C (-4°F ~ 167°F)
Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)	0°C ~ 40°C (32°F ~ 104°F)
Humidity	5% ~ 90% RH, Non-condensing	5% ~ 90% RH, Non-condensing
Dimensions (mm)	165.50 (L) x 77.8 (W) x 44.2 (H)	165.50 (L) x 77.8 (W) x 44.2 (H)
Compliance	RoHS	RoHS
