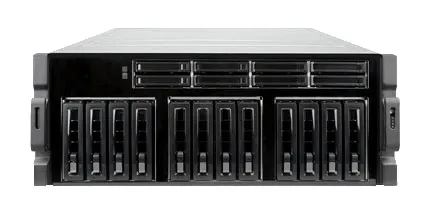

AI Training Server System GRAND-C422-20D-H
GRAND-C422-20D-H
The GRAND-C422-20D is an AI training server system with Intel® Xeon® W family processor and powerful PCIe expansion ability, Support RAID controller card.
Overview:
● Intel® Xeon® W family processor supported
● Up to 7 x PCIe Slot, up to 4 dual width GPU cards
● Water cooling system on CPU
● Support SAS SSD
● Support one M.2 SSD M-key slot (NVMe PCIe 3.0 x4)
● Support 10GbE network
● Support RAID controller card
● IPMI remote management
Features:
The AI training system GRAND-C442 is dedicated for these tasks because it offers a wide range of slots for storage expansion, acceleration cards and video capture, Thunderbolt™ or PoE add-on cards for unlimited data ac-quisition possibilities. In order to develop a useful training model, existing and widely used deep learning training frameworks such as Caffe, Tensor-Flow or Apache MXNet are recommended. These facilitate the definition of the apt architecture and algorithms for a distinct AI application.
Expandable to suit your needs
AI computing requires huge computing power, so our system can support up to 4 dual-width expansion slots (PCIe x8) and 2 single-width expansion slots (PCIe x4) for maximum expansion ability to meet computing needs. All six of the backplane slots connect directly to the system host board. This is perfect for applications that require minimal latency.
Storage (M.2, SATA, SAS & U.2 by SKU)
The GRAND-C422-20D supports M.2 2280 M key (PCIe x4) nVMe, SATA HDD/SSD, SAS HDD & U.2 SSD (by SKU). It has a built-in M.2 2280 M key (PCIe x4) nVMe port and 20 bays of HDD/SSD slots including two U.2 SDD slots. The GRAND-C422-20D supports M.2 solid-state disk which is the next-generation small-sized form factor introduced by Intel after mSATA. It has better performance than general SATA SSD but it is lighter and more power saving.
