IEI Integration Corp

AI VPU Computing Accelerator Card

AI VPU Computing Accelerator Card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU,M.2 AE key interface, 2230, RoHS.

Overview:

• M.2 AE key form factor (22 x 30 mm)

• 1 x Intel® Movidius™ Myriad™ X VPU MA2485

• Power efficiency, approximate 4.5W

• Operating Temperature -20°C to 60°C

• Powered by Intel’s OpenVINO™ toolkit

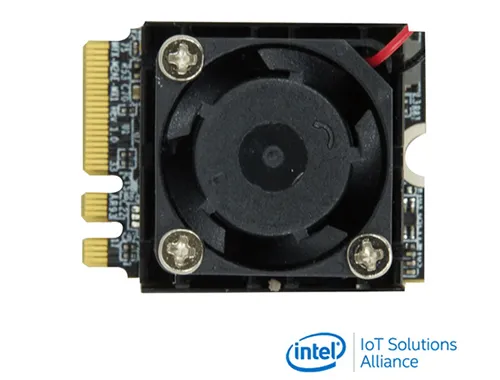

Mustang-M2AE-MX1 AI VPU Accelerator Card

The Mustang-M2AE-MX1M.2 AE-key card included one Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference solution for compact size and embedded systems.

VPU is short for vision processing unit. It can run AI faster, and is well suited for low power consumption applications such as surveillance, retail, transportation. With the advantage of power efficiency and high performance to dedicate DNN topologies, it is perfect to be implemented in AI edge computing device to reduce total power usage, providing longer duty time for the rechargeable edge computing equipment.

Key Features of Intel® Movidius™ Myriad™ X VPU:

• Native FP16 support

• Rapidly port and deploy neural networks in Caffe and Tensorflow formats

• End-to-End acceleration for many common deep neural networks

• Industry-leading Inferences/S/Watt performance
