IEI Integration Corp

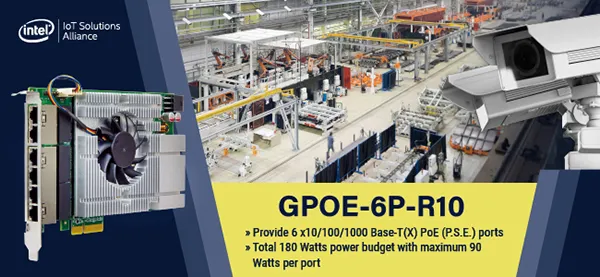

PoE Expansion Module Card - GPOE-6P-R10

Overview

IEI releases the new product of GPOE series – GPOE-6P-R10. Compare with GPOE-2P and GPOE-4P, GPOE-6P-R10 has more ports to connect with more devices. By using GPOE-6P-R10, customers could use in different application such as PoE IP camera, VoIP phone, wireless AP, security gate, access control and PoE panel pc.

Features of single-board computer

Providing 6 PoE ports with one slot capacity and only 21.59mm wide, GPOE-6P-R10 support total 180 watts power budget and has its own individual cooler heat sink with fan. Moreover, IEI provide GPOE Management Software Tools to control each PoE ports.

IEI GPOE-6P includes cooler heat sink with fan and only with one slot capacity. Mostly the embedded computer system will not only insert one GPOE card, IEI GPOE-6P provides two LED light and management software tools to clarify the function for each cards and ports. IEI GPOE management software tools could control the power and monitor the speed and process of data transfer through lan. Moreover, the software tools could also allocate the power of total 180 watts.

• Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
• Total 180 Watts power budget with maximum 90 Watts per port
• PoE power sourced from 12~24VDC of ATX power
• Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
• Supports SW/RDK (IEI GPOE Management Software Tools)
• Compatible with x4, x8 and x16 PCIe slots
• IEEE 802.3at/bt PoE compliant
