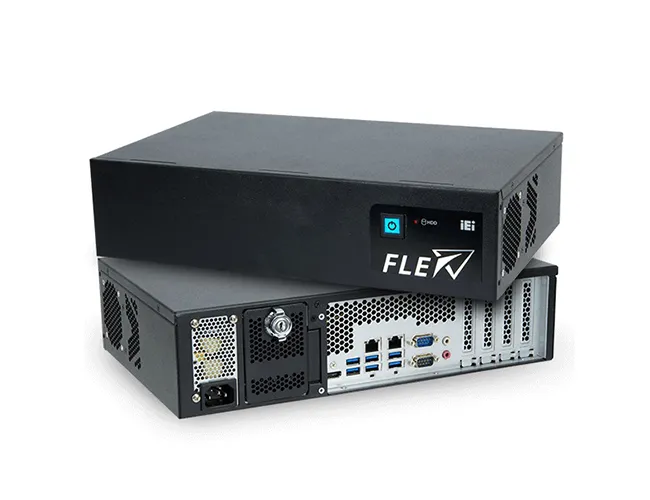

AI Modular Embedded System

Features of FLEX-BX200-Q370 & FLEX-BX200-C246

Intel® Coffee Lake AI Modular Box PC

2U AI Modular Box PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor

Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10

Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots

Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support

QTS-Gateway support

Modular LCD panel kit design (Please refer: )

IEI AI Ready Solution Accelerates Your AI Initiative

The FLEX-BX200 is an AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business. IEI’s FLEX-BX200 supports graphics cards, Intel FPGA acceleration cards, and Intel VPU acceleration cards, and provides additional computational power plus end-to-end solution to run your tasks more efficiently. With the NVIDIA TensorRT, QNAP QuAI, and Intel OpenVINO AI development toolkit, it can help you deploy your solutions faster than ever.

4-Bay Hot Swappable HDD RAID 0/1/5/10 Protection

The FLEX series offers four 2.5”HDD bays with high speed SATA 6Gb/s interface that can expand storage capabilities and enable fast data transfers. The equipped Intel Q370 chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure the RAID 0/1/5/10 from the BIOS menu to increase performance and/or provide automatic protection against data loss from drive failure.

What type of RAID do I need?

RAID 0 (Striping) -The highest performing level

RAID 1 (Mirroring) - Data safety

RAID 5 (Distributed Parity)-offers both data safety and performance

RAID 10 (combining mirroring and striping) data safety and big data volume

Four PCIe x4/x8 Low Profile Expansion Slots

The FLEX series supports multiple PCIe slots including two PCIe 3.0 x8 and two PCIe 3.0 x4 slots, which are compatible with standard low profile add-on cards, to meet different edge inference computing applications.

High Speed: 10GbE card, fiber network card

I/O card: Serial port card, USB card, LAN card, etc.

AI accelerating card: VPU card, FPGA, GPU card, etc.

Wireless card: Wi-Fi card, mobile wireless card, etc.

Storage card

HDMI 1.4 Output Delivers 4K High Definition Video and Audio

The FLEX-BX200 integrated with Intel® Coffee Lake Desktop processor supports HDMI 1.4 output port delivering 4K 24 Hz with amazing details. And a single HDMI cable carries both video and audio signals, which makes hookup particularly easy.

Flexible Deployment

Rack Mount

The FLEX-BX200-Q370 is designed in 2U height for easy and quick installation in control cabinets.

Wall Mount

The FLEX-200-Q370 wall-mountable industrial box PC provides two-way direction for wall mounting, allowing users to orient the I/O panel upwards or downwards.

All-in-One Panel PC

The FLEX series featuring a modular design can be fitted with different sizes of panel kits to expand its capabilities.
