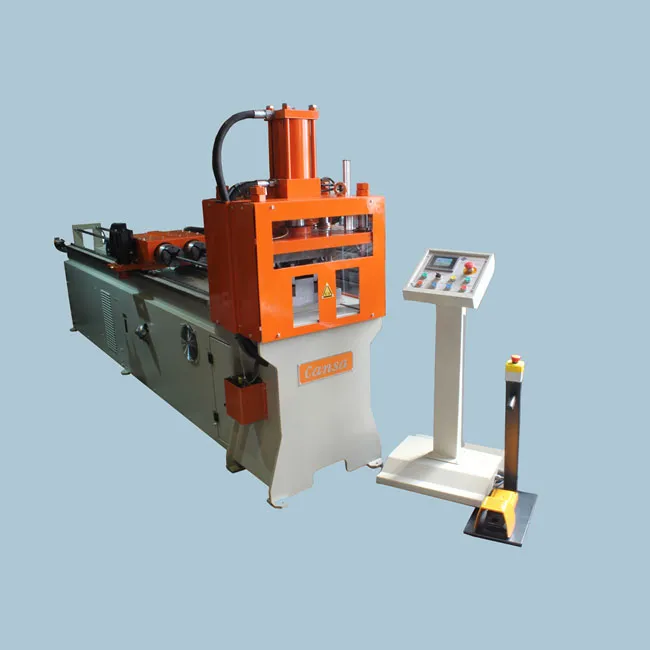

Tube Punching Machine PDM-3000
Technical Details:
CNC profile and pipe punching machine
Maximum pipe diameter 90 mm
Maximum profile size 40X80 – 60X60 mm
Very precise progress with servo motor and planet reduction gear
Hydraulic punching
30 tons hydraulic press
Total motor power 5.5 kW
Pneumatic profile-pipe retaining clamp
Blowing at the core automatically and burr throw
Automatically activated hydraulic oil cooler and fan
Timed automatic lubrication for working components
Switch adjustable hydraulic press
CNC system and 4.3” touch screen
Manual or automatic operation on the screen
To see daily/total amount of production on the screen
To follow error messages on the screen and on the watch page
Foot pedal or button control optionally
Ability to record programmes
Standard machine length for punching 3000 mm
Maximum hydraulic pressure 180 bar
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE,
