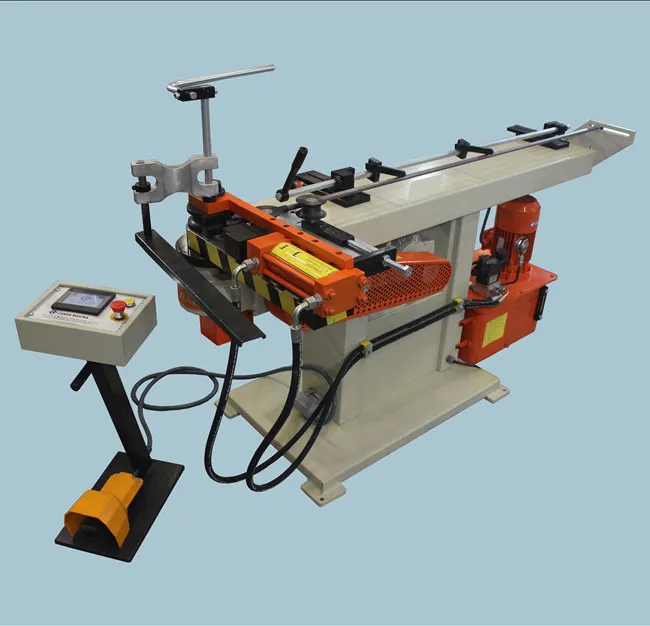

Mechanical Pipe Bending CM-32 Screen and Clamp
Technical Features:
NC system pipe bending machine with gear system
Maximum bending capacity 32X2 mm diameter
Hydraulic clamp
Max. 190 bending angle
Bending degree with encoder
Electric motor driven
Precise bending with brake motor
External brake lining cooling fan
3.2” color touch screen
Manual or automatic operation on the screen
Ability to see daily / total amount of production on the screen
Ability to control the tightening times of moving parts and to hold the desired pressure on the screen
Ability to record 100 different programmes
Mandrel length 2000 mm.
To follow error messages on the screen and on the watch page
Total motor power 4.4 kw
Electrical panel safety lock and panel lock with key
Max. hydraulic pressure 120 bar
Suitable for CE
Two years guarantee; technical service and training confidency by CANSA MAKINA
