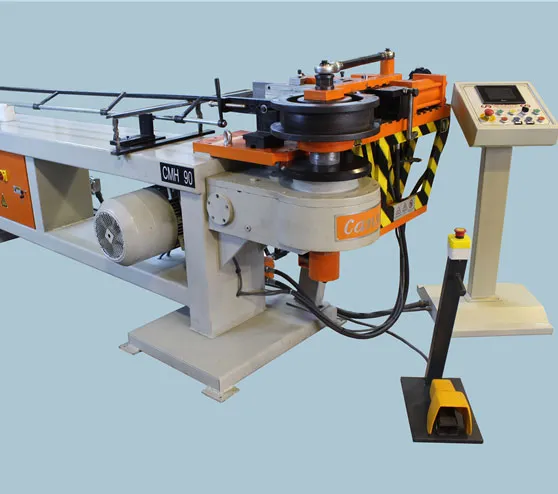

Hydraulic Pipe Bending Machine CMH-90
Technical Details:
NC system pipe bending machine with gear system
Maximum bending capacity 90X3 mm diameter
Hydraulic clamp
Hydraulic mandrel
Hydraulic support
Hydraulic pressure die
Max. 190 bending angle
Bending degree with encoder
Electric motor driven
Precise bending with brake motor
External brake lining cooling fan
7” color touch screen
Manual or automatic operation on the screen
Ability to see daily / total amount of production on the screen
Ability to control the tightening times of moving parts and to hold the desired pressure on the screen
To follow error messages on the screen and on the watch page
Foot pedal or button control optionally
Ability to record 1000 different programmes
Total motor power 18.5 kW
Mandrel length 3150 mm.
Max. hydraulic pressure 170 bar
Safety plate with pro-switch
Supported bend arm and bottom arm
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
