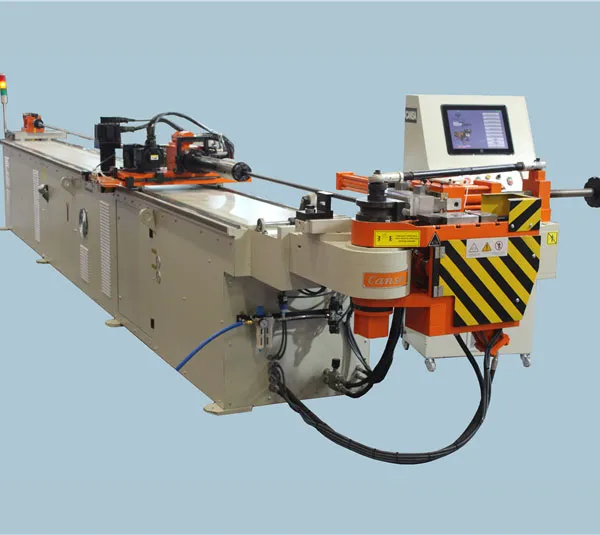

CNC tube bending machine CNC51 R1
Technical Details:
CNC tube bending machine
PLC control
Maximum bending capacity 51X3 mm diameter
Feeding axis by servo motor
Rotation axis by servo motor
Bending axis by hydraulic valves
Hydraulic clamp
Hydraulic mandrel
Hydraulic pressure die
Hydraulic support
Hydraulic clow collet
Hydraulic clamp system with bottom clamping
Max. 190 bending angle
Bending degree with encoder
Automatic mandrel lubrication
Timed automatic lubrication for working components
Automatically activated hydraulic oil cooler and double fans
15” PC touch screen
3D simulation
Manual, semi-automatic or automatic operation on the screen
Working without mandrel
To see daily / total amount of production on the screen
To follow error messages on the screen and on the watch page
Calculation of the length of tube or profile
Foot pedal or button control optionally
To record programmes on the memory
Total motor power 18 kW
Mandrel length 3500 mm.
Max. hydraulic pressure 160 bar
Security warning light
Safety plate on the front and back of the bending head
Supported bend arm and bottom arm
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
