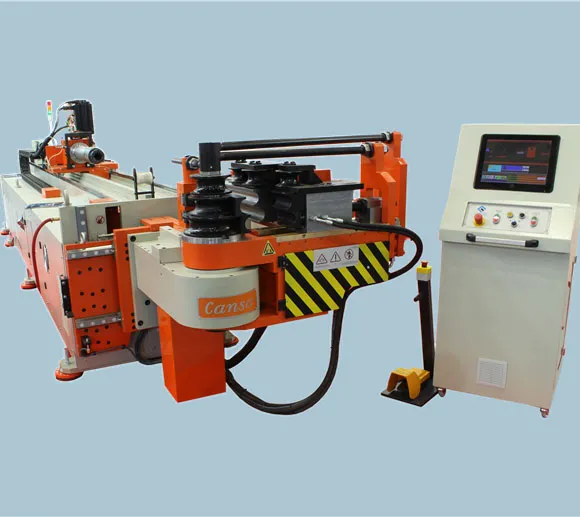

CNC tube bending machine CNC60 R3
Technical Details:
CNC tube bending machine
PLC control
Maximum bending capacity 60X3 mm diameter
To make rolling (to bend a wide range of bending with roller)
To work three different radius at the same time
Bending axis by servo motor
Feeding axis by servo motor
Rotation axis by servo motor
Mold axis by servo motor
Hydraulic clamp
Hydraulic mandrel
Hydraulic pressure die
Hydraulic support
Hydraulic clow collet
Hydraulic up-down movement
Max. 190 bending angle
Bending degree with encoder
Automatically activated hydraulic oil cooler and double fans
Timed automatic lubrication for working components
Automatic mandrel lubrication
15” PC touch screen
Manual, semi-automatic or automatic operation on the screen
To see daily / total amount of production on the screen
To follow error messages on the screen and on the watch page
Calculation of the length of tube or profile
Foot pedal or button control optionally
To record programmes on the memory
Mandrel length 3900 mm.
Max. hydraulic pressure 180 bar
Total motor power 25 kW
Security warning light
Safety plate on the front and back of the bending head
Supported bend arm and bottom arm
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
