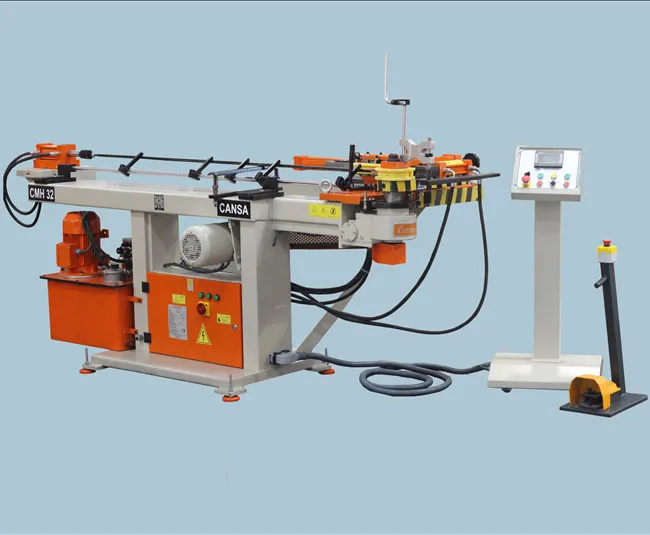

Hydraulic Tube Bending Machine CMH-32
Technical Details:
NC system pipe bending machine with gear system
Maximum bending capacity 32X2 mm diameter
Hydraulic clamp
Hydraulic mandrel
Hydraulic support
Max. 190 bending angle
Bending degree with encoder
Electric motor driven
Precise bending with brake motor
External brake lining cooling fan
4.3” color touch screen
Manual or automatic operation on the screen
Ability to see daily / total amount of production on the screen
Ability to control the tightening times of moving parts and to hold the desired pressure on the screen
To follow error messages on the screen and on the watch page
Foot pedal or button control optionally
Safety plate with pro-switch
Ability to record 100 different programmes
Mandrel length 2000 mm.
Max. hydraulic pressure 120 bar
Total motor power 4.4 kW
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
