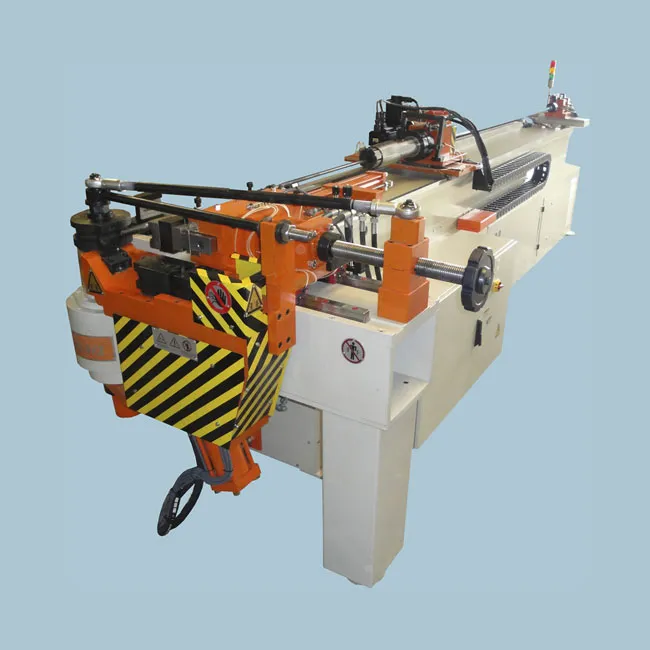

CNC tube bending machine CNC76 R1
Technical Details:
CNC tube bending machine
PLC control
Maximum bending capacity 76X4 mm diameter
Feeding axis by servo motor
Rotation axis by servo motor
Bending axis by hydraulic valves
Hydraulic clamp
Hydraulic mandrel
Hydraulic pressure die
Hydraulic support
Hydraulic clow collet
Timed automatic lubrication for working components
Automatic mandrel lubrication
Max. 190 bending angle
Bending degree with encoder
Hydraulic clamp system with bottom clamping
Automatically activated hydraulic oil cooler and double fans
15” PC touch screen
3D simulation
Manual, semi-automatic or automatic operation on the screen
Working without mandrel
To see daily / total amount of production on the screen
To follow error messages on the screen and on the watch page
Calculation of the length of tube or profile
Foot pedal or button control optionally
To record programmes on the memory
Mandrel length 3700 mm.
Max. hydraulic pressure 210 bar
Total motor power 35 kW
Security warning light
Safety plate on the front and back of the bending head
Supported bend arm and bottom arm
Electrical panel safety lock and panel lock with key
Two years guarantee; technical service and training confidency by CANSA MAKINA
Suitable for CE
