DIN 48 x 48 format
This product family has been specially designed for use in the most difficult areas.
Its excellent resistance to surges, vibrations and tearing-out, allows to have a very long service life.
All integrated functions and the very short assembly time, make it very economical.
It is especially recommended for switchboards in electrical substations, electricity production and in the most severe industries.

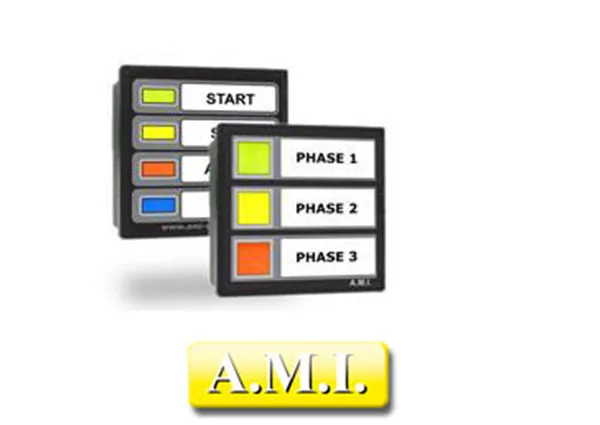

Equipped with 3 or 4 “high luminosity” LED indicators, the include:
7 choices of color display, selectable by switch,
Connection by removable connector,
Very wide voltage tolerance,
Led test terminal for external button
IP65 waterproof on the front
Front label can be produced by the user (free software provided)
The many models in this product family make it possible to:
Display 3 or 4 status information such as:
“ON, OFF, ALARM” for example
The presence of the 3 three-phase tensions of an electrical departure
With 1 or 2 remote contact possible depending on the model
Also available with ignition threshold and detection of abnormal voltage presence.
Possible power supplies:
PAN35: 8 to 60Vac / dc, 70-300Vac (PH / N) or 104-500Vac (PH / PH), 15 to 265Vac / 300Vdc.
PAN45: 8 to 60Vac / dc, 70-300Vac (PH / N), 70 to 150 Vac / dc, 15 to 265Vac / 300Vdc (only PAN45-05-113).
