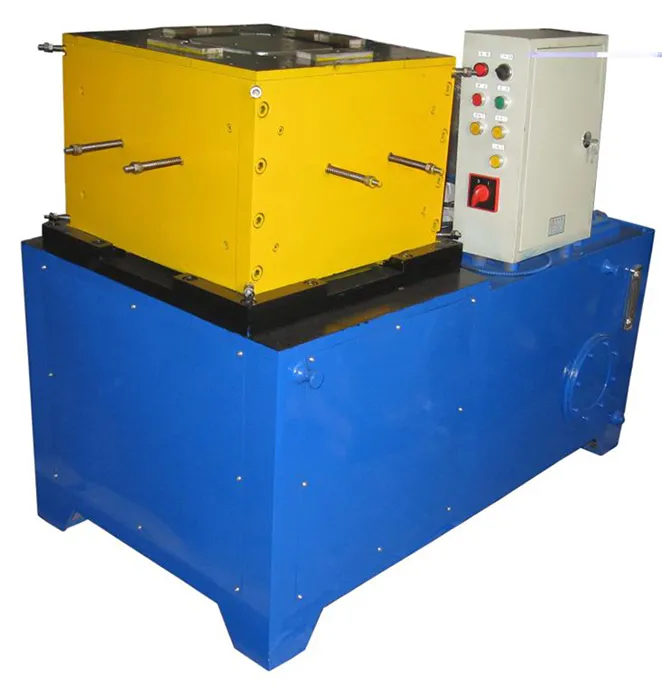

Semi Automatic Square Can Making Machine

Semi Automatic Square Can Making Machine

Features

  • It is specifically used for 18Liters big square can body shape forming and four sides beading.

  • The hydraulic parts brand is KOMPASS

  • The electronic component: SCHNEIDER/ OMRON

  • Some of molds select the high alloy steel(Cr12MoV) and quenching(60-62HRC)

  • Motor: Siemens



Specifications

Model:

GTFY-18

Capacity:

10-15cans/min

Range

9-20L

Oil pressure:

12Mpa

Sheet thickness:

0.2-0.4mm

Working air pressure:

0.3Mpa

Volume of oil tang:

130L

Power of motor:

7.5kw

Power:

AC/380V/50HZ

Net weight:

900kgs

Dimension:

1400x720x1200mm
