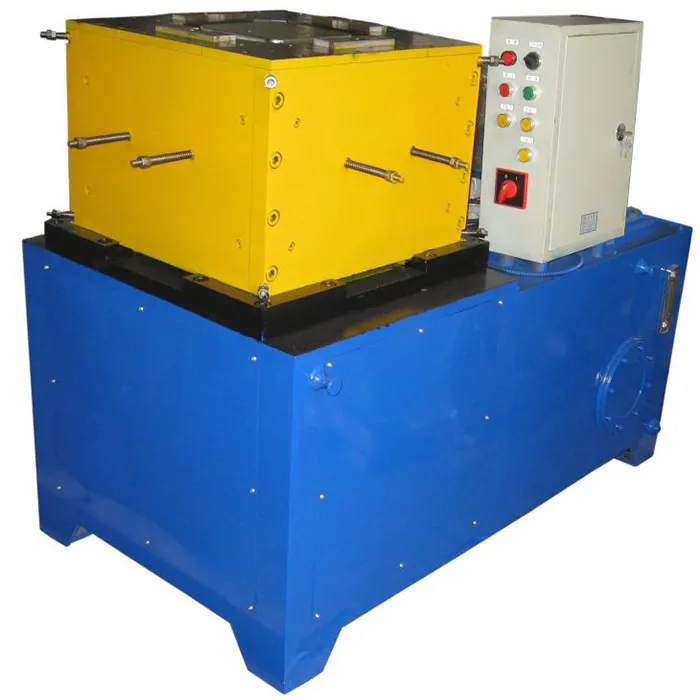

18L Square Oil Cheese Honey Can Body Forming Machine

18L Square Oil Cheese Honey Can Body Forming Machine

Features

  • It is specifically used for 18Liters big square can body shape forming and four sides beading.

  • The hydraulic parts brand is KOMPASS

  • The electronic component: SCHNEIDER/ OMRON

  • Some of molds select the high alloy steel(Cr12MoV) and quenching(60-62HRC)

  • Motor: Siemens

Function: This machine is combined with process of expanding the container into square, angel tendon pressing and cover paneling's, The can body is stretched at the same time, which can ensure the body not be contorted, deformed or rebound, and save energy source.

Usage: it is mainly used in the one-off forming of the 5 Gallon square container body. It is easy to stably operate, and with high precision processing equipment, raising mechanical precision and guaranteeing stable integrated operation.

Specifications

Model:

GTFY-18

Capacity:

10-15cans/min

Range

9-20L

Oil pressure:

12Mpa

Sheet thickness:

0.2-0.4mm

Working air pressure:

0.3Mpa

Volume of oil tang:

130L

Power of motor:

7.5kw

Power:

AC/380V/50HZ

Net weight:

900kgs

Dimension:

1400x720x1200mm
