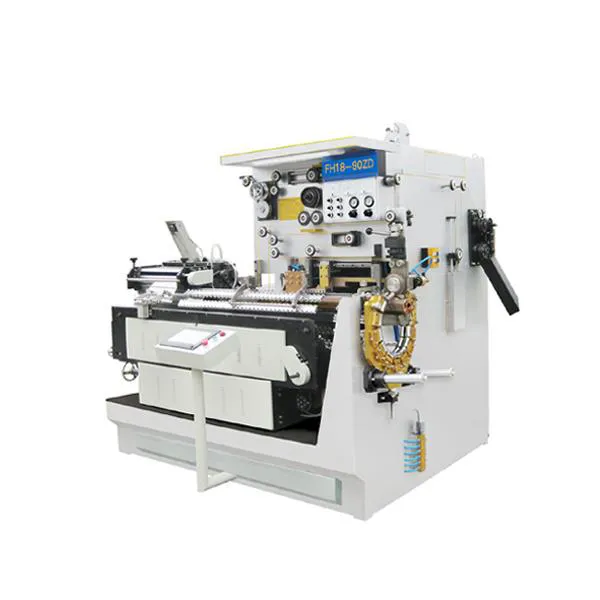

Automatic Conical Paint Can Body Seam Welding Machine

Automatic Conical Paint Can Body Seam Welding Machine

Features

  • PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

  • Low voltage apparatus are produced by SCHNEIDER.

  • IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

  • OMRON is our sensor supplier.

  • HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Specifications

ode

FH18-90ZD

Linear rate of welding

6-21m/min

Production capability

15~38Cans/min

Applicable can diameter

Φ220~Φ300mm

Applicable can height

250~450mm

Applicable material

Tinplate steel-based

Applicable material thickness

0.25~0.42mm

Seam welding landing

0.8mm 1.0mm 1.2mm

Seam point distance

0.5-0.8mm

Applicable copper wire diameter

1.5mm 1.7mm

Cooling water

Temperature 12~18°C Pressure:0.4-0.5Mpa

Discharge 12L/min

Compressed air consumption

400 L/min

Pressure of compressed air

0.5Mpa-0.7Mpa

Power

380V±5% 50HZ

Total power

63KVA

Packed Dimension

2300x1800x2000mm

Packed Weight

2500Kg
