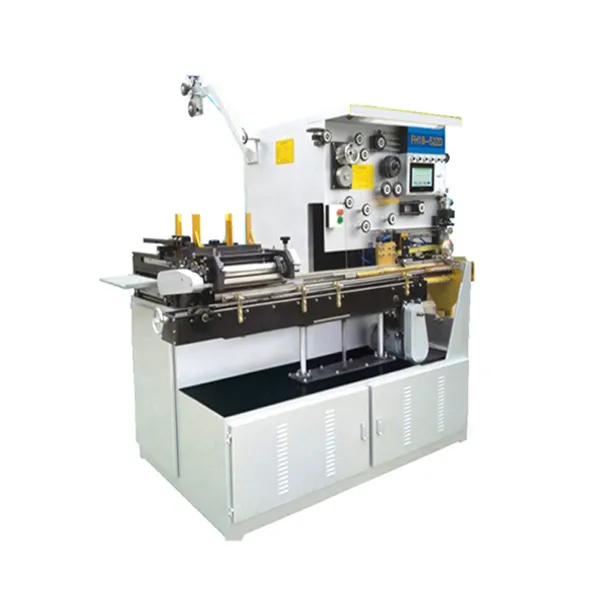

Automatic Food Tomato Paste Fish Tin Can Seam Welding Machine

Automatic Food Tomato Paste Fish Tin Can Seam Welding Machine

Features

  • PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

  • Low voltage apparatus are produced by SCHNEIDER.

  • IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

  • OMRON is our sensor supplier.

  • HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Specifications

Linear rate of welding

6-36m/min

Production capability

60~120Cans/min

Applicable can diameter

Ø52~ø99mm

Applicable can height

70~320mm

Applicable material

Tinplate steel-based  Chrome

Applicable material thickness

0.16~0.30mm

Seam welding landing

0.4mm  0.6mm

Seam point distance

0.5~0.8mm

Applicable copper wire diameter

ø 1.38mm ø 1.5mm

Cooling water

Temperature:12-18°C Pressure:0.4~05Mpa

Discharge:10L/min

Power

380V±5% 50HZ

Total power

18KVA

Dimension

1750×1100×1800mm

Weight

1800Kg
