Features

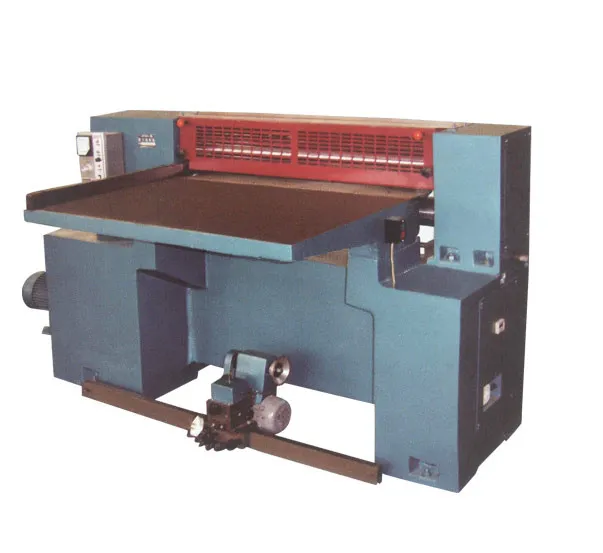

This series of cutting machines is used to cut silicon steel sheets and other sheet steels for transformer, electric motor, and other industries. This machine adopts manual feeding and disc blade roll shearing mode to cut iron sheets. High quality alloy too steel and advanced process are adopted in disk blade as its critical part, featuring a rational structure, double-faced edge, high cutting precision, and long service lifespan. This machine has good rigidity, fast cutting speed, easy adjustment, and is set with counting function. The machine can also be applied for cutting sheet copperplates and other materials. It has greatly welcomed by users.
As per user’s demand, this machine can also use hard alloy blade to meet the user requirement for longer service lifespan.
Specifications
Model
GT1B16
GT1B16-3
GT1B18
GT1B18-3
Iron Cutting Speed (m/min)
74
0-30(Stepless Speed Adjustment)
Max. Width Allowed for Passage of Sheet Iron (mm)
1050
1250
Max. Cutting Thickness for Sheet Iron (mm)
0.5
Min. Width of the Cut Sheet Iron (mm)
40
Power of Cutting Motor (Kw)
1.5
Exterior Dimension of Machine(L×B×H)(mm)
1835*1000*1050
2285*1000*1050
2135*1000*1050
2585*1000*1050
Weight of Machine (Kg)
1350
1450
1800
