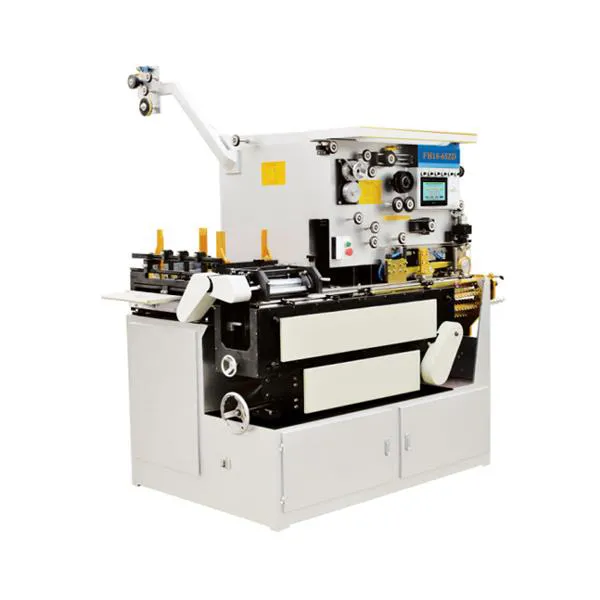

Automatic Insecticide Pesticide Aerosol Spray Tin Can Welder Machine

Automatic Insecticide Pesticide Aerosol Spray Tin Can Welder Machine

Features

  • PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

  • Low voltage apparatus are produced by SCHNEIDER.

  • IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

  • OMRON is our sensor supplier.

  • HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Specification

Linear rate of welding

6-26m/min

Production capability

40~100Cans/min

Applicable can diameter

Φ65~Φ180mm

Applicable can height

60~280mm

Applicable material

Tinplate steel-based

Applicable material thickness

0.2~0.35mm

Seam welding landing

0.4mm 0.6mm

Seam point distance

0.5-0.8mm

Applicable copper wire diameter

Φ 1.38mm Φ 1.5mm

Cooling water

Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min

Compressed air consumption

600 L/min

Pressure of compressed air

0.5Mpa-0.7Mpa

Power

380V±5% 50HZ

Total power

40KVA

Dimension

1750×1100×1800mm

Weight

1800Kg
