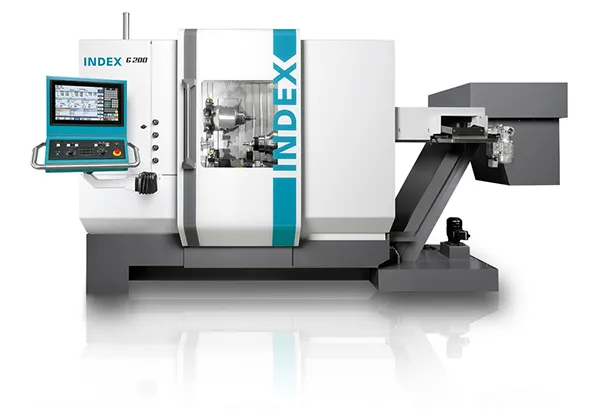

INDEX G200 Flexible turning and milling
The INDEX G200. Flexible turning and milling - as productive as automatic turning.
The next generation of the turn-mill center with more power in the smallest area.
machine highlightsyour benefits
- Up to 3 tool carriers with Y-axis can be used on the main spindle and counter spindle
- Simultaneous machining with up to 4 tools at the same time
- Powerful and dynamic milling spindle (360 degrees B-axis, max. 7,200 rpm, 22 kW & 52 Nm)
- Economical complete machining of workpieces, both bar material and chucked parts
- Incomparably large degrees of freedom in the spacious work area designed for turning and milling with a turning length of up to 660 mm
- Very good ergonomics for short set-up times
- Small footprint and high power density
Flexible modular system
With a high degree of rigidity, thermal and dynamic stability, very good vibration-damping properties and a work area that is unique in this class, the INDEX G200 enables the production of the best workpiece qualities.
The high-performance milling spindle with HSK-A40 tool holder, in conjunction with the hydrodynamically mounted Y/B axis, ensures demanding drilling or milling operations - without the use of driven tool holders - simply and inexpensively.
Configure the G200 turn-mill center the way you need it for your workpiece requirements.
Up to three tool holders with a Y-axis and a maximum of 42 tool stations (VDI25) can be used on the main spindle and counter spindle of the turning-milling center. A tailstock or a turret steady rest with a clamping range of 10 - 66 mm are also possible when configuring the G200.
