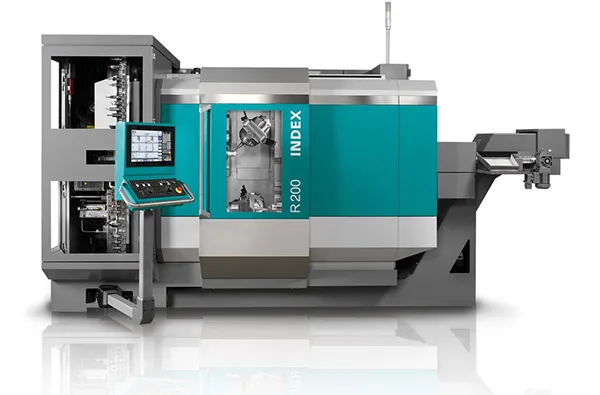

R200 Turn-mill center

R200 Turn-mill center

•    65 mm bar diameter
•    5,000 rpm speed
•    24 kW max. power
•    190 Nm max. torque

Turn-mill center R200 – simply convincing

Increase productivity by two independent subsystems with full 5-axis capability

Machine highlights

Your benefits

• 5-axis machining on workpiece front and rear allows an extremely large variety of parts
• A total of 12 stationary turning tools for particularly high rigidity and cutting performance
• High cutting volume by powerful motorized milling spindles at 18,000 rpm
• Best damping and guiding properties of the milling spindles result in better workpiece quality and extended tool lives
• Outstanding dynamics due to high rapid traverse speeds and accelerations
• Already included: the operating system iXpanel iX4.0 with 18.5” touch screen based on Siemens S840D sl

The magazine – all tools on board!

At a glance

•    80/120 tool pockets (HSK-T40 mounting)
•    Shortest change cycles; chip-to-chip time only 4 s
•    Simultaneous and independent loading of both milling spindles possible
•    High degree of functional reliability due to standard tool magazine with chain design
