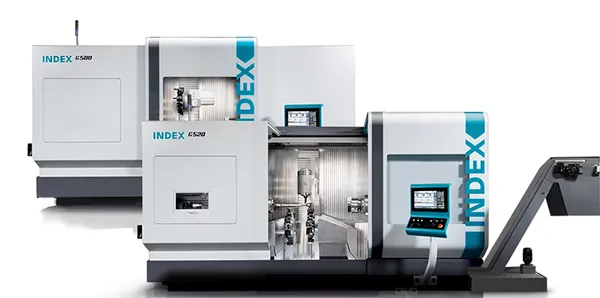

G500-G520 turning-milling center

G500-G520 turning-milling center

The innovative turn-mill center for high-performance complete machining of large workpieces

Turning and milling in new dimensions

Machine highlights INDEX G500 / INDEX G520your benefits

• Identical main and counter spindle with spindle passage Ø 120 mm
• Chuck Ø 500 mm
• Tool store for up to 139 tools (INDEX G520)
• Sophisticated workspace concept for turning lengths of up to 1,600 mm / 2,300 mm and variable machining options
• High thermal and mechanical stability
• High dynamics (rapid traverse up to 50 m/min)

Complete machining from the modular system

The modular system of this series offers a wide range of options. Up to 3 tool carriers can be integrated into the work area. The work area offers ample space for processing any type of workpiece. The work area can accommodate parts up to a length of 1,600 / 2,300 mm. The powerful main and counter spindle is designed for bar diameters up to Ø 120 mm and for chuck parts up to Ø 500 mm. Turret steady rests are available for machining long or wavy parts.

The INDEX G520 is equipped with a powerful motor milling spindle and is therefore able to carry out 5-axis machining simultaneously. The ergonomic set-up and operating concept was of great importance for the new development. All relevant components are easily accessible for operating and maintenance personnel.

The modular iXcenter robot cell is available for all machines in this series for the flexible feeding and removal of raw and finished parts.
