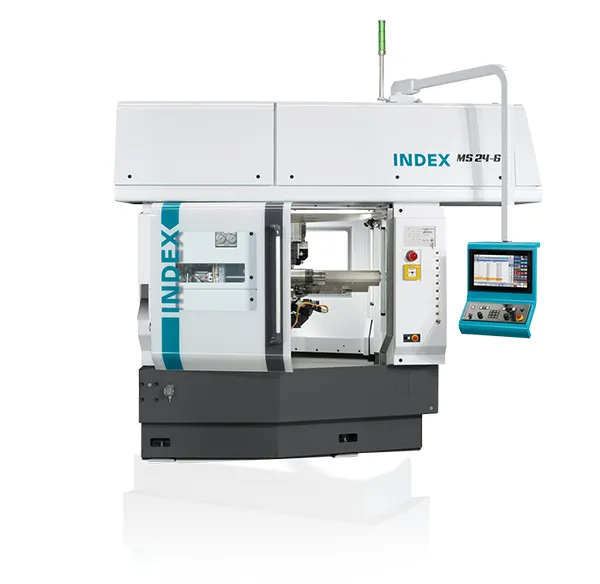

INDEX MS24-6 Multi-spindle machines

• 24 mm bar diameter

• 10,000 rpm
• 15 kW max. power
• 18 Nm max. torque

Front open multi spindle machine for bar turned parts

Precision, speed and flexibility

Machine highlights

Your benefits

• Front-opening machine for bar machining
• Freely accessible and thus extremely user-friendly
• Highly-dynamic slides with sliding guide (X-axis)
• Non-wearing Z-axis due to quills with hydrostatic support
• Rear-end machining with synchronized spindle
• 6 tools maximum for backworking

Machining options

The typical INDEX machine features a tool carrier arrangement in the work area without a sliding block, which allows more than one tool to be used on each spindle. The possible machining operation is thus limited only by the tool holder. As a result, you can specify all production steps in almost all spindle positions. Another advantage: You have an open flow of chips.

Maximum productivity and economy of multi-spindle automatics combined with the precision and flexibility of CNC single-spindle automatics is what makes the MS24-6 multi-spindle automatic so successful.

Gear cutting, hobbing

• Coupled with electronic precision
• Requirements with maximum stability
• Toothing in correct position relative to other surfaces or shaped elements
• Any angular offset can be programmed
• Greater tool service life due to shifting with Y-axis

Milling

Milling with live tool in the following variants:

• Side milling cutter in conjunction with C-axis operation (transmit function)
• End mill in conjunction with Y-axis mode
• Plunge milling

Elliptical deburring of cross-drill holes

Uniform deburring (even chip removal) of cross-drill holes based on interpolation of the C-axis, X-axis, and Z-axis with live tool
