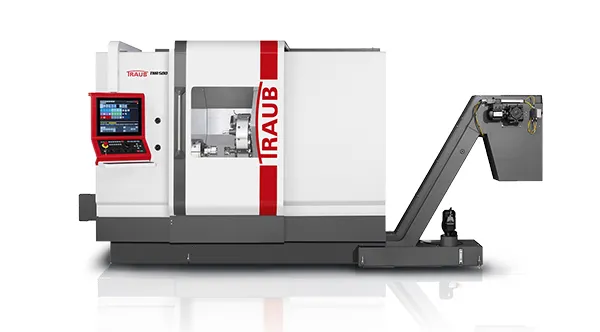

Traub TNA500
TRAUB TNA500
Universal turning machine
TNA500 CNC universal turning machine – Cost-effective.
The right machine for use under toughest production conditions.
Machine highlights
Your benefits
- Rigid mineral cast bed in 45° block design for high accuracy
- Work spindle A11 with belt drive for high torques
- Spindle clearance dia. 102 mm, chuck up to dia. 400 mm
- Generously dimensioned bed guides
- Radial turret for 12 tools with VDI 40 mounting and W-serration for high process reliability or disk-type turret for 12 tools with VDI 40 mounting
- Orthogonal, linear Y-axis for high accuracy
- Large axis travels X 255 mm / Y ±60 mm / Z 750 mm
The control TRAUB TX8i-s
The open control concept with a superfast 64-bit processor ensures that you have your production under control at all times.
Whether tool breakage monitoring, realistic real-time simulation for shorter setup times or visual collision detection before running in the machine. The TNA500 has all this as standard.
Structured machine design
The TRAUB TNA400 stands for consistent further development of proven production solutions from TRAUB. Individually equipped, this new flexible universal lathe takes its place both in tooling and prototyping, but also in medium and large series production. Decades of know-how is reflected in numerous design details, such as in a pocket in the panel above the main spindle which
ensures collision-free use of long boring bars.
Ergonomic operating concept
The generously dimensioned work area ensures best accessibility for setup of the TRAUB TNA400. Main spindle and tool turret can be accessed easily allowing fast and flexible setup and changeover. The sophisticated work area concept with steep-sloping and smooth covers provides for the ideal chip flow and prevents chip nests.
Highlights
- Fast setup
- Excellent access to the work area
- Good chip flow
