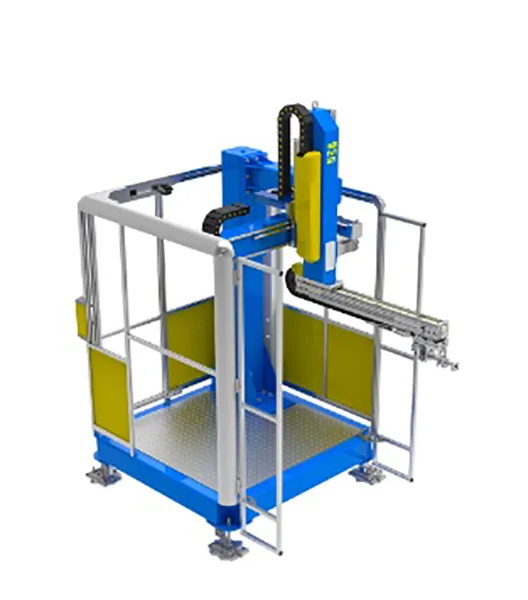

SM2 X-Series side-entry robot
High-performance robot that can combine the typical productivity of side-entry robots with versatility features that are revolutionary for this category. Its unprecedented architecture, with a solid anchoring to the ground and plenty of travel in all three directions, is a change in the paradigm of flexibility of use for side-entry robots.
The fast and flexible side-entry robot for medium-tonne presses
SM2 X-Series is a side-entry robot particularly indicated for fast single- and multi-cavity work cycles on medium-tonne presses.
Technical features
Maximum capacity [kg]:
6
Vertical axle:
Direct
Vertical axle pneumatic balancing:
Factory issued
Z axle travel - Transversal [mm]:
1800
X axle travel – Extraction [mm]:
600
Y axle travel - Vertical [mm]:
700
Movement of axles X,Y,Z:
AC synced brushless servo motors
Guiding system for axles X,Y,Z:
Self-lubricating sliding blocks with roll-by balls on carbon steel prismatic guides
Positioning repeatibility [mm]:
± 0.1
Pneumatic C axle rotation [deg]:
0/90
Control unit:
Campetella’s EVO proprietary system
