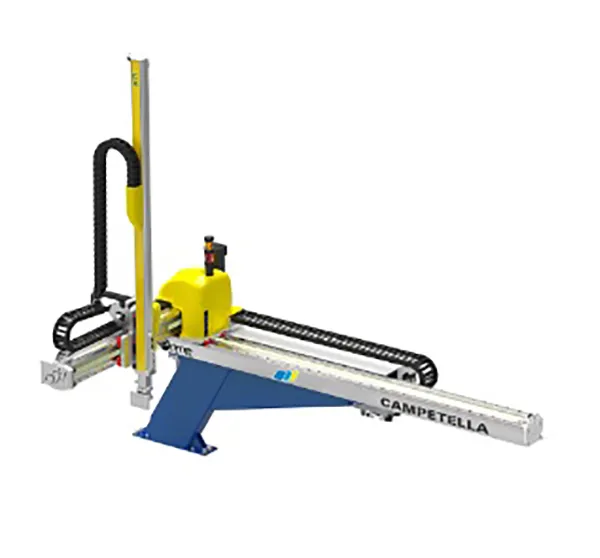

CX1 PRIME Top entry robot
Minimal design, a mix of functionality and accuracy, this is the top-entry Cartesian industrial robot designed to offer high performance in the highest quality-price ratio.
The compact robot for small and medium-sized tonnage injection molding machines
The CX1 PRIME Series model is recommended for the automation of small and medium tonnage injection molding machines.
Technical features
CX1-1A
CX1-2A
Maximum payload [kg]:
6
Vertical axis:
Direct
Z axis stroke – Horizontal [mm]:
1500
2000
X axis stroke - Extraction [mm]:
600
Y axis stroke - Vertical [mm]:
1200
X,Y,Z axes motion:
AC synchronous brushless servomotors
X,Y,Z axes guidance system:
Sliding blocks with roll-by-balls on a hardened steel prismatic guide
Positioning repeatability [mm]:
± 0,1
Pneumatic C axis rotation [deg]:
0°/ 90°
Pneumatic AB axis rotation[deg]:
0°÷180°
Electric B axis rotation [deg]:
0°÷332°
Control unit:
Campetella PRIME proprietary system
