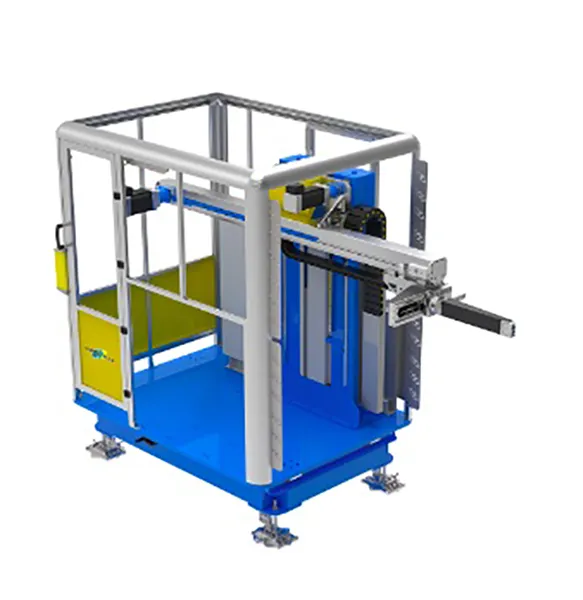

Concept X-Series side entry robots
Redefines the concept of side-entry in multi-cavity applications. Characterised by ingenious and revolutionary mechanics, Concept X-Series is a game changer when it comes to the concept of productivity in the world of high-speed side-entry robots. Perfect with the use of voluminous pick-up hands, it is unbeatable in the most extreme applications with high number of cavities of light parts.
Extremely productive in applications with high number of cavities
Concept X-Series is the perfect side-entry robot for applications with high number of cavities of light parts, with particularly fast work cycles in medium-high tonnage presses.
Technical features
Modula Maxi - 2
Maximum capacity [kg]:
15
Vertical axle
Direct
Vertical axle pneumatic balancing:
Factory issued
Z axle travel - Transversal [mm]:
2520
X axle travel – Extraction arm [mm]:
290
Y axle travel - Vertical [mm]:
670
Axle motion:
AC synced brushless servo motors
Axle guiding system:
Self-lubricating sliding blocks with roll-by balls on carbon steel prismatic guides
Positioning repeatibility [mm]:
± 0.1
Control unit:
Campetella’s EVO proprietary system
