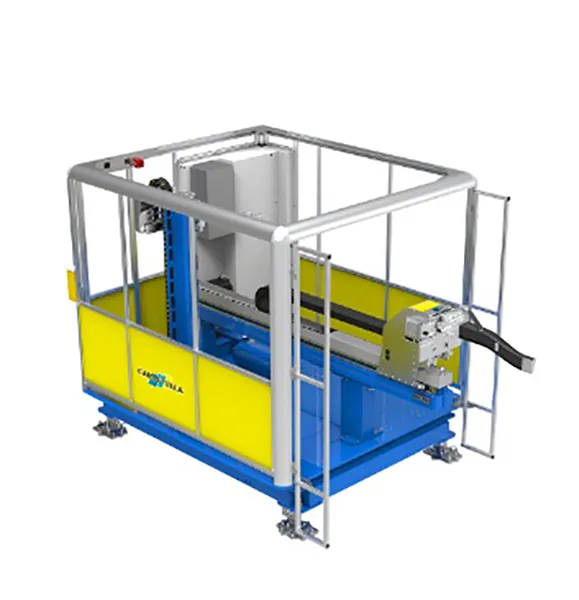

Modula X-Series side entry robot
The ultra-performing side-entry designed for maximum Productivity No compromises. Modula X-Series is a side entry robot exclusively designed to reduce cycle time in the most extreme applications. Sturdy steel structure, light alloys and carbon fibre identify the DNA of mechanics conceived for maximum strain, to stand accelerations and speeds at the top of its range.
Designed for the highest performances in medium-high-tonnage presses
Modula X-Series is a side-entry robot particularly indicated for extremely fast work cycles, both single- and multi-cavity, on medium-high-tonnage presses
Technical features
Modula - 1
Modula - 2
Maximum capacity [kg]:
15
Z axle travel - Transversal [mm]:
2550
2970
X axle travel – Extraction arm [mm]:
300
Discharge axles travel - Vertical [mm]:
1300
Axle movement:
Synced AC brushless servo motors
Axle guiding system:
Self-lubricating sliding blocks with roll-by balls on carbon steel prismatic guides
Positioning repeatability [mm]:
± 0.1
Control unit:
Campetella’s EVO proprietary system
