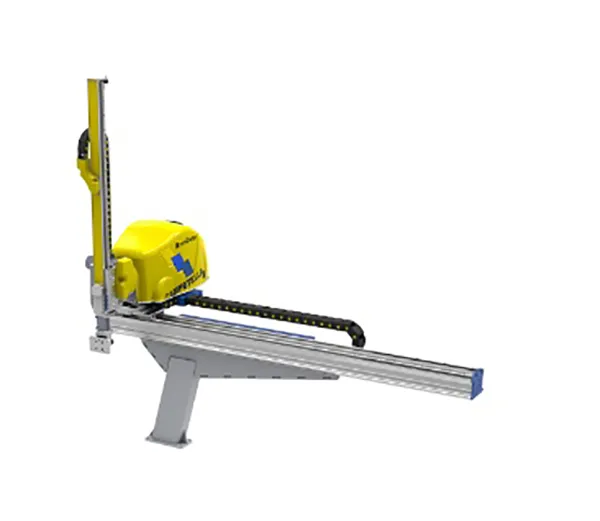

RHEA PRIME Top entry robot
Minimal design, a mix of functionality and accuracy, this is the top-entry Cartesian industrial robot designed to offer high performance in the highest quality-price ratio.
Ultra-compact, ultra-fast. Ideal for small-sized injection molding machines
RHEA PRIME Series is the smallest within the Campetella Cartesian industrial family robots. Designed for injection molding machines from 20 to 150 tons and for multi-cavity take out, it is equipped with three servo-guided electric axes.
Technical features
RHEA - 1 A
RHEA - 2 A
Maximum payload [kg]:
2
Vertical axis:
Direct
Z axis stroke – Horizontal [mm]:
1200
1500
X axis stroke - Extraction [mm]:
300
Y axis stroke - Vertical [mm]:
800
X,Y,Z axes motion:
AC synchronous brushless servomotors
X,Y,Z axes guidance system:
Sliding blocks with roll-by-balls on a hardened steel prismatic guide
Positioning repeatability [mm]:
± 0,1
Pneumatic C axis rotation [deg]:
0°/ 90°
Control unit:
Campetella PRIME proprietary system
